Executive standard: Q / irmv-2008
Rated voltage: 250V
Working temperature: - 65 ~ + 250 ℃, short-time temperature tolerance of 350 ℃

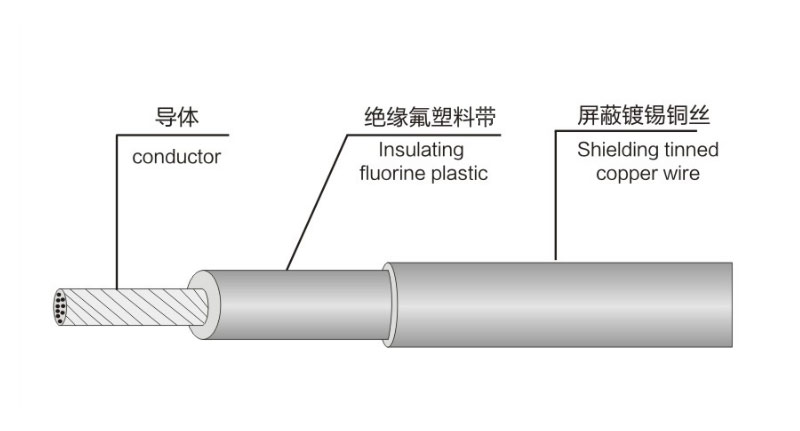

Conductor: stranded bare copper wire or stranded silver plated copper wire
Insulation: PTFE film wrapping + sintering
Shielding: tin plated copper wire or silver plated copper wire 0.10mm
Color: red, yellow, blue, white, black, gray, brown, purple, green, blue, etc.
Product features: high temperature resistance, cold resistance, super softness, aging resistance, anti-interference, insulation easy to peel, conductor easy to weld. It has the characteristics of softness and small outer diameter, and is especially suitable for the environment with frequent bending.
Scope of application: it is mainly used for connection of internal electrical equipment and instrument lines of various aircraft, spaceships, armored combat vehicles, ships and other special purposes under high temperature environment.
Delivery length: short line sections not less than 10m are allowed, but the quantity shall not exceed 10% of the total delivery quantity.
Wire specification
標準截面(mm2) | 線芯結構(mm) | 最大外徑 | ||
根數/單線直徑 | 內導體絞合直徑 | 絕緣外徑 | 屏蔽總外徑 | |
0.012 | 7*0.05 | 0.15 | 0.57 | 0.97 |
0.035 | 7*0.08 | 0.24 | 0.60 | 1.00 |
0.05 | 7*0.10 | 0.30 | 0.65 | 1.05 |
0.07 | 14*0.08 | 0.35 | 0.70 | 1.10 |
0.10 | 21*0.08 | 0.42 | 0.77 | 1.17 |
0.12 | 24*0.08 | 0.45 | 0.80 | 1.20 |
0.14 | 19*0.10 | 0.48 | 0.83 | 1.23 |
0.15 | 30*0.08 | 0.50 | 0.85 | 1.25 |
0.20 | 42*0.08 | 0.60 | 0.95 | 1.35 |
0.30 | 60*0.08 | 0.72 | 1.07 | 1.47 |
0.35 | 75*0.08 | 0.80 | 1.15 | 1.55 |
0.50 | 105*0.08 | 0.90 | 1.25 | 1.65 |
0.75 | 19*0.23 | 1.15 | 1.60 | 2.00 |
1.00 | 19*0.26 | 1.30 | 1.75 | 2.15 |
1.20 | 19*0.28 | 1.40 | 1.85 | 2.25 |
1.50 | 19*0.32 | 1.60 | 2.05 | 2.45 |
2.00 | 19*0.37 | 1.85 | 2.30 | 2.75 |
2.50 | 49*0.26 | 2.09 | 2.54 | 2.95 |
