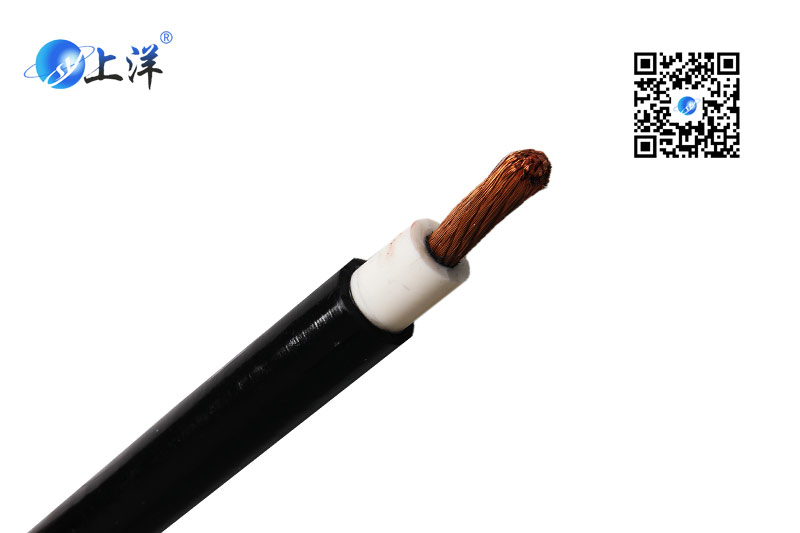

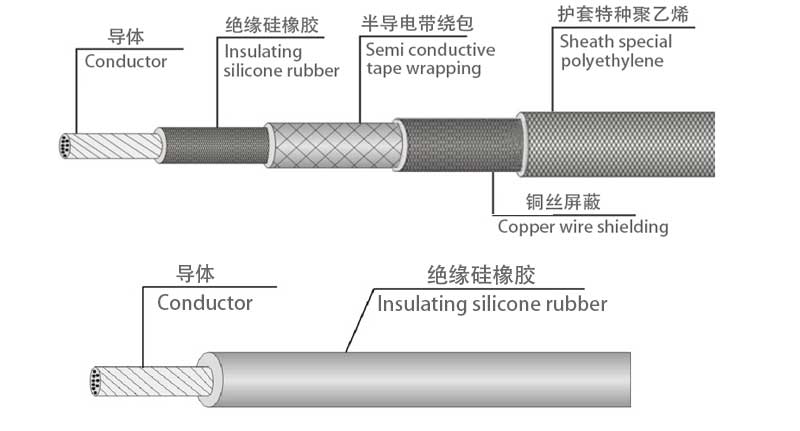

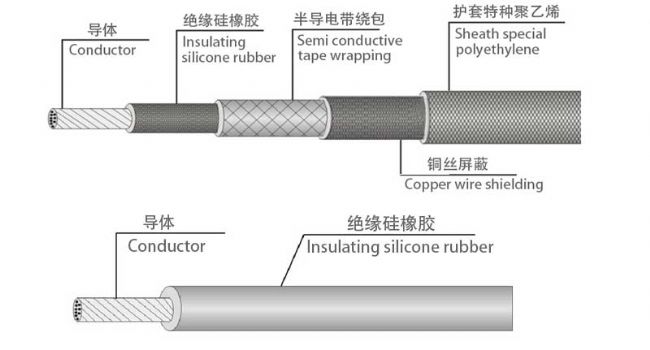

導體:鍍錫銅絲
絕緣體:硅橡膠
顏色:紅、黑
電壓等級:交流電壓6KV 10KV
適用范圍:本產品用于各種移動式電機、電器設備的連接。
產品特征:具有優良的耐高壓性和不老化性,連續工作溫度:
電線規格
型號 Type |
標稱截面 mm2 |
根數/線經 (No./mm) |
絕緣厚度mm |
外經mm | ||
6KV |
10KV |
6KV |
10KV | |||
JGG |
6 |
84/0.30 |
3.5 |
5.0 |
12.5 |
15.5 |
10 |
84/0.40 |
3.5 |
5.0 |
13.5 |
16.5 | |
16 |
126/0.40 |
3.5 |
5.0 |
15.0 |
18.0 | |
25 |
196/0.40 |
3.5 |
5.0 |
16.5 |
19.5 | |
35 |
276/0.40 |
3.5 |
5.0 |
18.0 |
21.0 | |
50 |
396/0.40 |
3.5 |
5.0 |
20.0 |
23.0 | |
70 |
360/0.50 |
3.5 |
5.0 |
21.5 |
24.5 | |
95 |
475/0.50 |
3.5 |
5.0 |
23.0 |
26,5 | |
120 |
608/0.50 |
4.0 |
5.0 |
25.0 |
27.5 | |
150 |
756/0.50 |
4.0 |
5.0 |
27.0 |
29.0 | |
185 |
925/0.50 |
5.0 |
5.5 |
31.0 |
33.0 | |
240 |
1221/0.50 |
5.5 |
6.0 |
35.0 |
37.0 |
